Control / Automation Cards

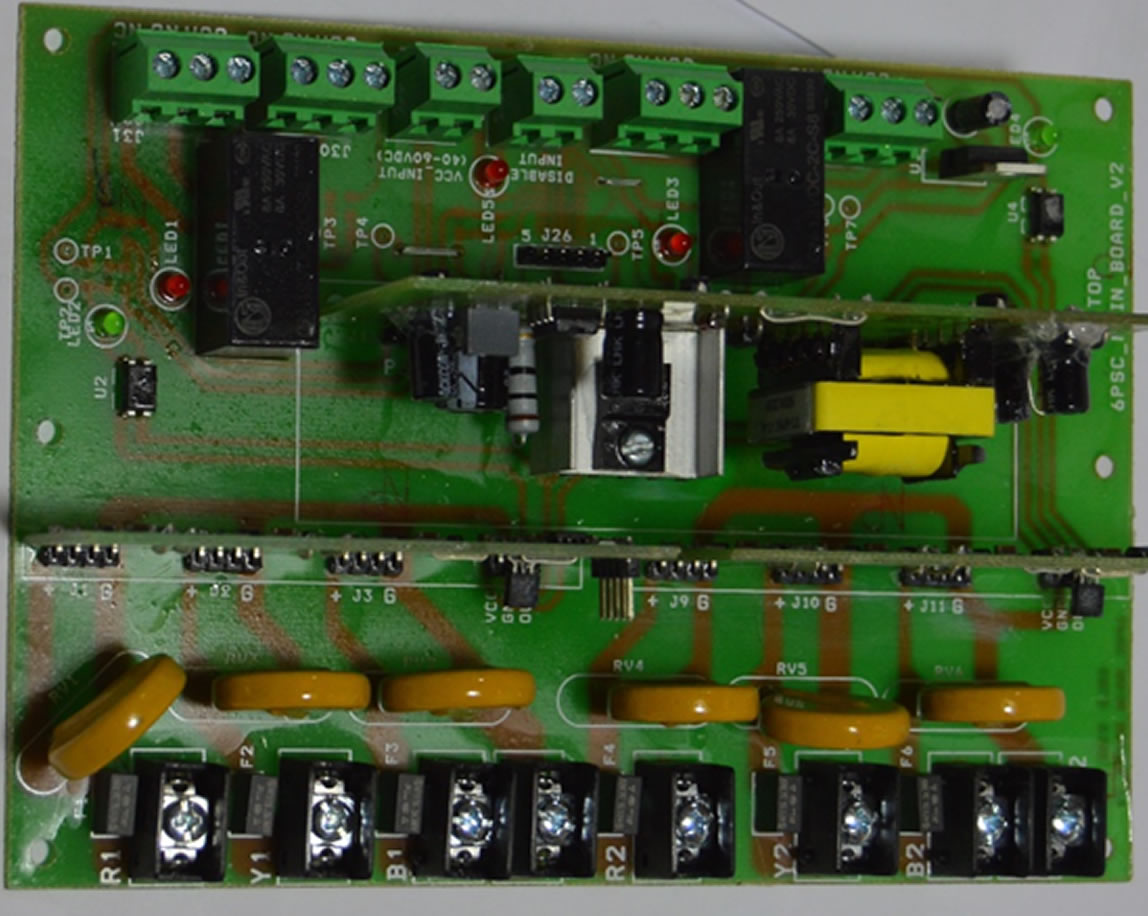

ATS (Automatic Transfer Switch)

Application: Telecom Panel

Description

Control Card to Sense Three phase AC Voltages from Mains & DG and Switch ON the respective Contactors/Relays based on the Voltage Range, Priority and Time Set inside the Host Controller.
Runs on 40VDC to 60VDC Supply.
6KV surge Protection for AC Input.
Isolated Sensing of AC Rail.
Emergency Disable Input to Shut Down Contactors in case of Emergency.
LED Indications for Valid Range(Green) & Relay Turn On(Red)

Fan Controller Gen 1

Application: Panels Which requires Cooling of inside temperature

Description

Operating voltage 40VDC – 60VDC.
Temperature Based Fan speed controller
Variable Voltage Based Controlling of 3 Wire Fans
Fan Feed Back Detection (Both RG & FG type Fans)
2 Relays to Indicate Fan Failure & Over Temperature
Can Be used for Up to 4 Channels
No of Fans to be controlled can selected via Jumpers

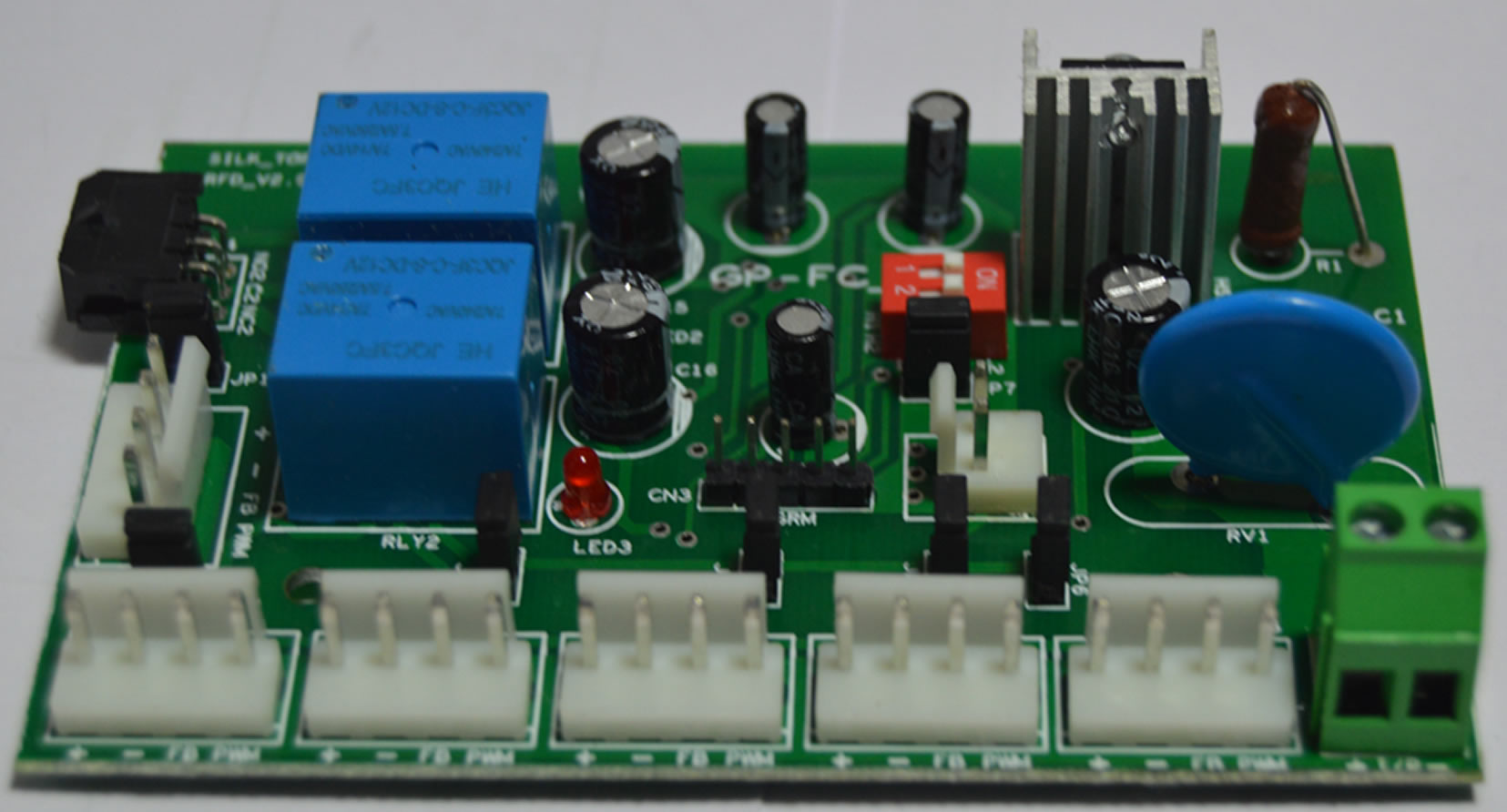

Fan Controller Gen 2

Application: Panels Which requires Cooling of inside temperature

Description

Operating voltage 40VDC – 60VDC.
High Surge Rating Withstand on DC Bus.
Temperature Based Fan speed controller.
PWM Based Controlling of 4 Wire PWM Fans.
Fan Feed Back Detection (Both RG & FG type Fans).
2 Relays to Indicate Fan Failure & Over Temperature.
DIP Switches to Select Over Temperature Detection (50°C, 55°C, 60°C, 65°C).
Can Be used for Up to 6 Channels.
No of Fans to be controlled can selected via Jumpers.

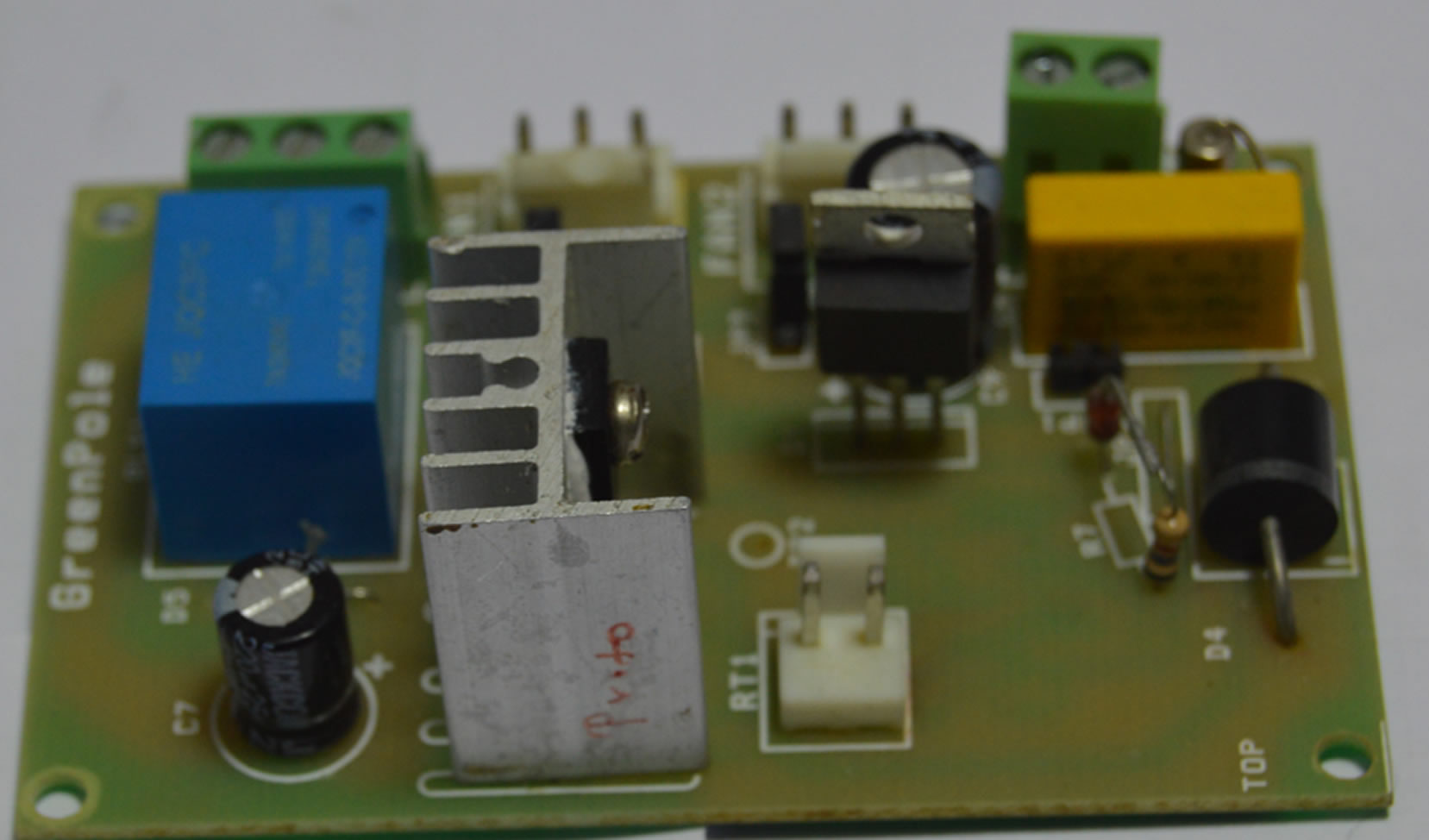

2 Channel FAN Controller

Application: Cooling Systems

Description

Operating Voltage: 40VDC to 60VDC
Low cost platform to Switch On & Off FAN
Fan Feed Back Detection (Both RG & FG type Fans).
Fan Failure Indication Via Relay

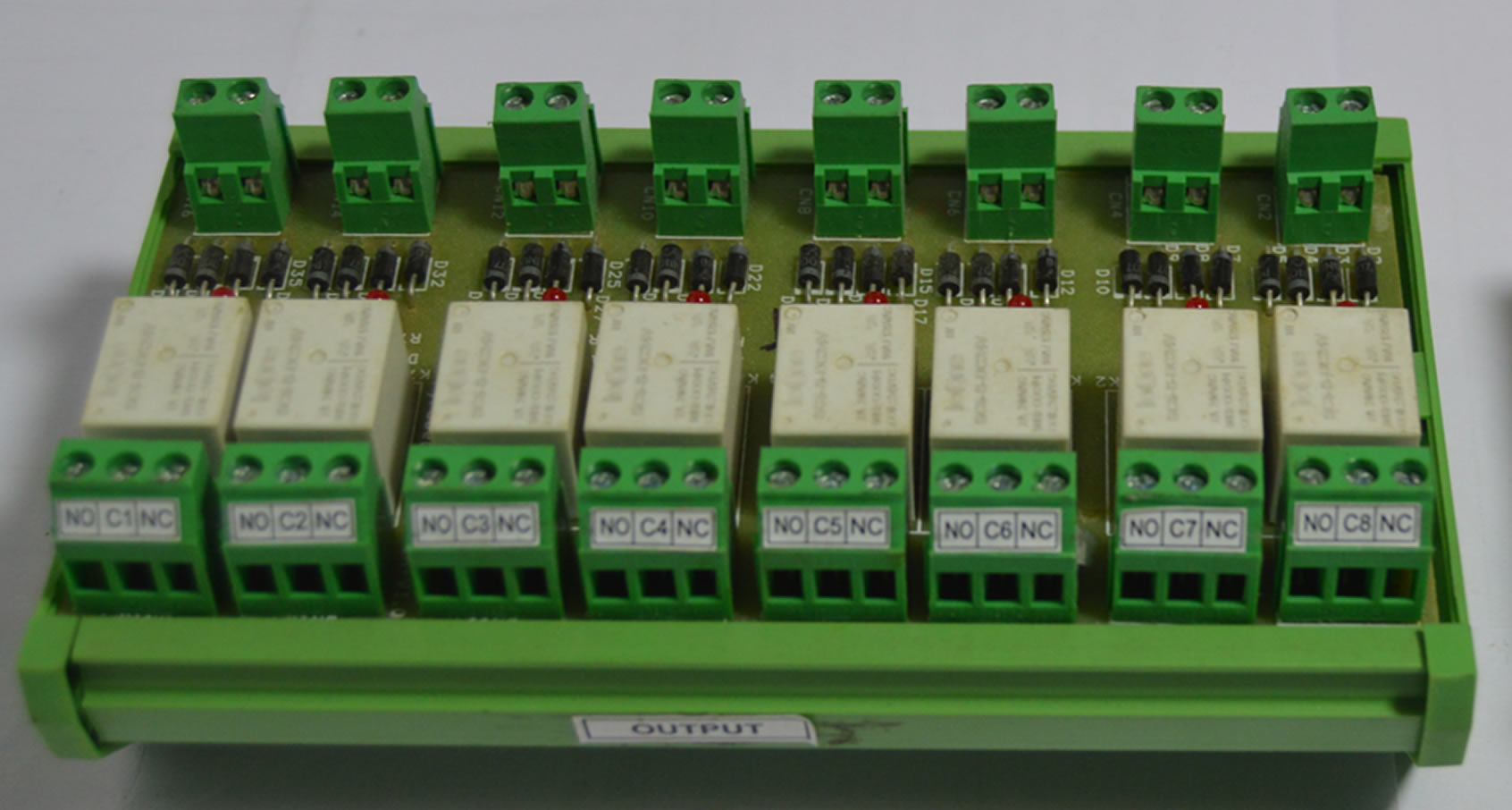

Relay Cards:

Description

8 channel, 4 channel, 2 channel
12V or 24V Variant
