LED Lights / Drivers

2W DC LED Light

Application: Indoor Cabinets

Description
  • Operating Voltage: 40VDC – 60VDC
  • Panel Mounting
  • Simple, Low cost & Durable Product
  • 2W System Wattage
  • Also Available in 24V Variant (20VDC – 30VDC)
  • Body: ABS

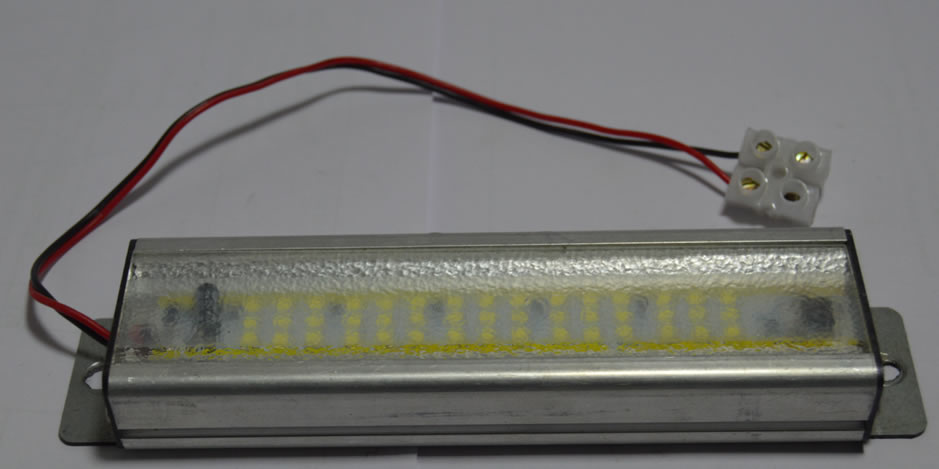

5W DC LED Light

Application: Indoor Cabinets

Description
  • Operating Voltage: 40VDC – 60VDC
  • Panel Mounting
  • 5W System Wattage
  • Powered by OSRAM Led's
  • Also Available in 24V Variant (20VDC – 30VDC)
  • Body: Aluminum Enclosure
  • Honey Comb Reflector for uniform Light Distribution

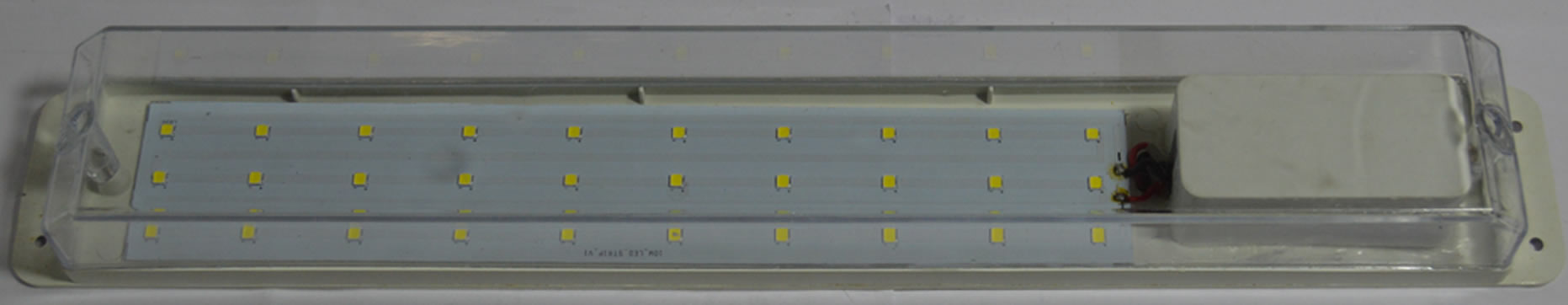

12W DC LED Light

Application: Indoor Cabinets (Railway Panels)

Description
  • Operating Voltage: 80VDC – 140VDC
  • Panel Mounting
  • 12W System Wattage
  • Powered by OSRAM LED's
  • Body: ABS Enclosure

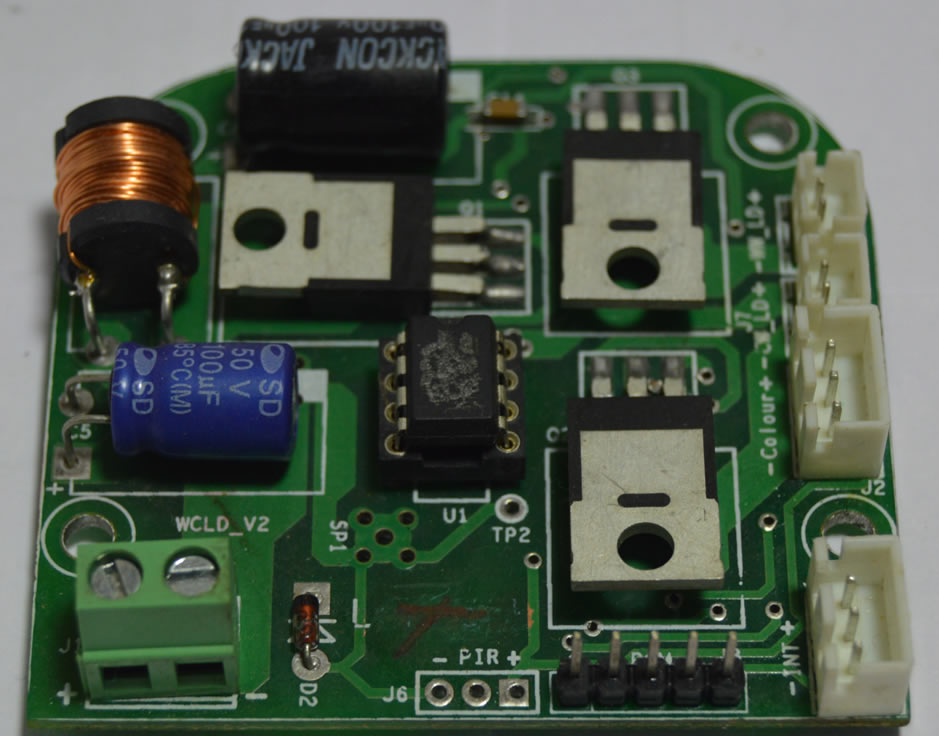

Warm White Cool White LED Driver

Description

Application: Indoor Lighting, Architecture Lighting, Table Top Study Lamps.

  • DC LED Driver to control color & intensity of a LED Lamp
  • Input Voltage: 22VDC to 26VDC
  • System Wattage: 10Watts
  • Linear variation of both Color (warm & Cool) & intensity (0% to 100%)
  • Control through Potentiometer
  • Can be interfaced to control through Touch Switch
  • Motion based Dimming can be Added

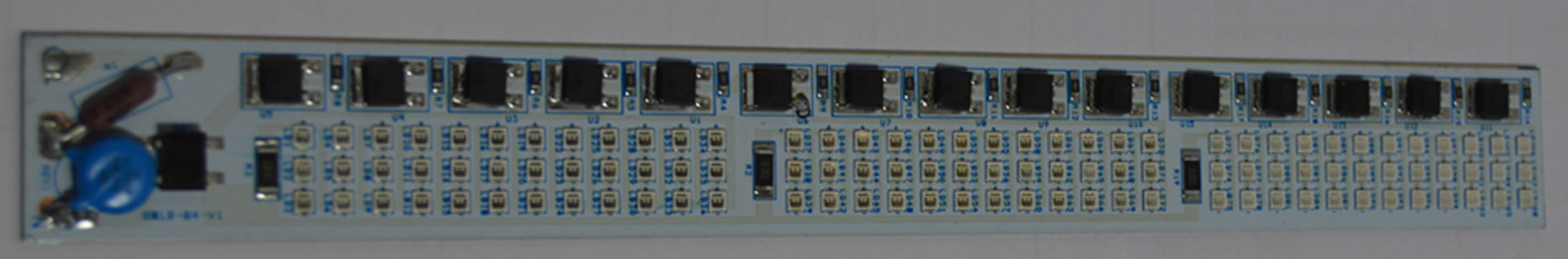

OBLD

Application: Under Water Lighting (Marine Application)

Description
  • Input Voltage: 220VAC to 260VAC
  • 2KV surge Protection
  • On Board LED Driver
  • Very Low Eternal components
  • System Wattage: 84Watts

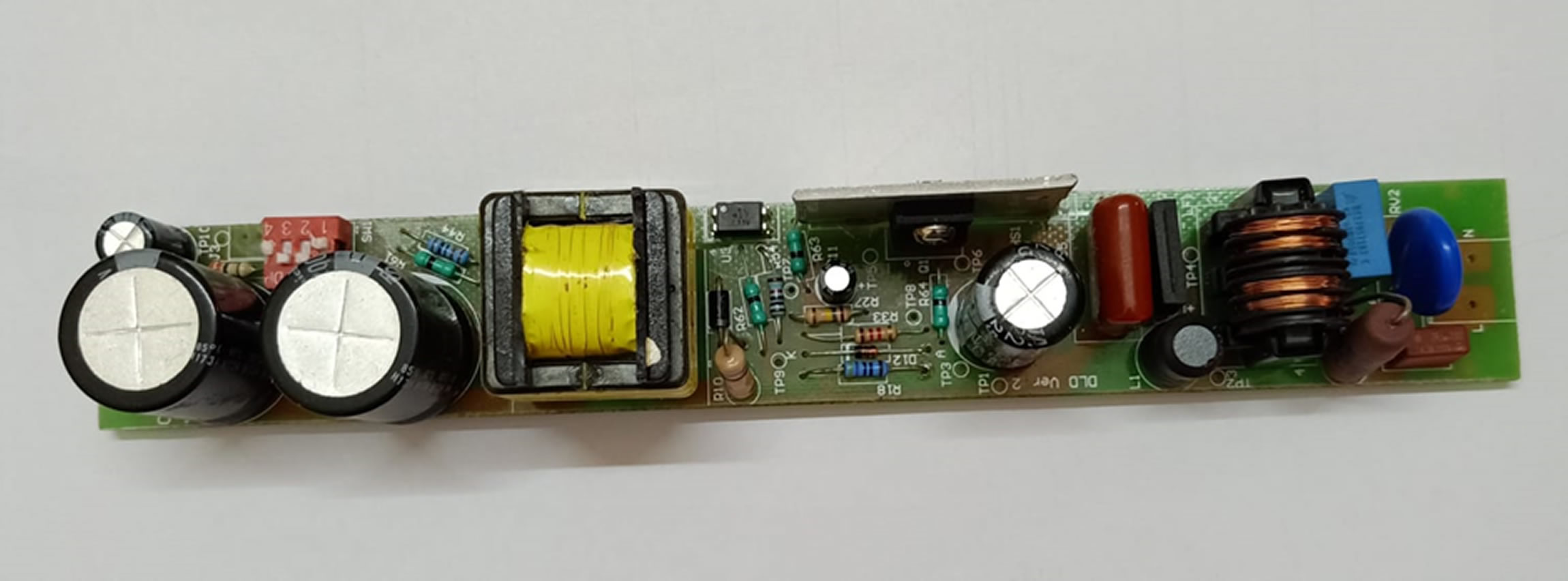

40W AC-DC Isolated Dimmable LED Driver

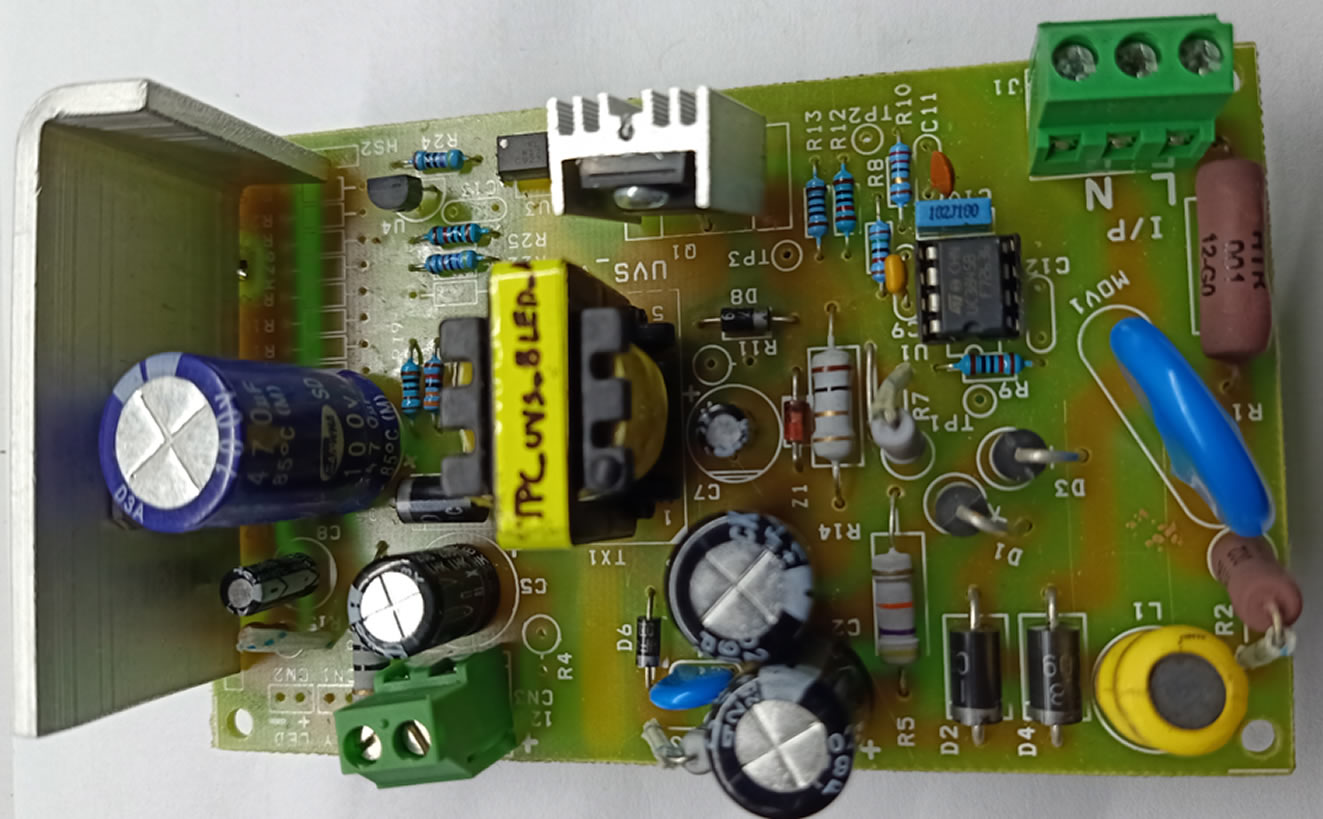

18W AC-DC UV LED Light Driver

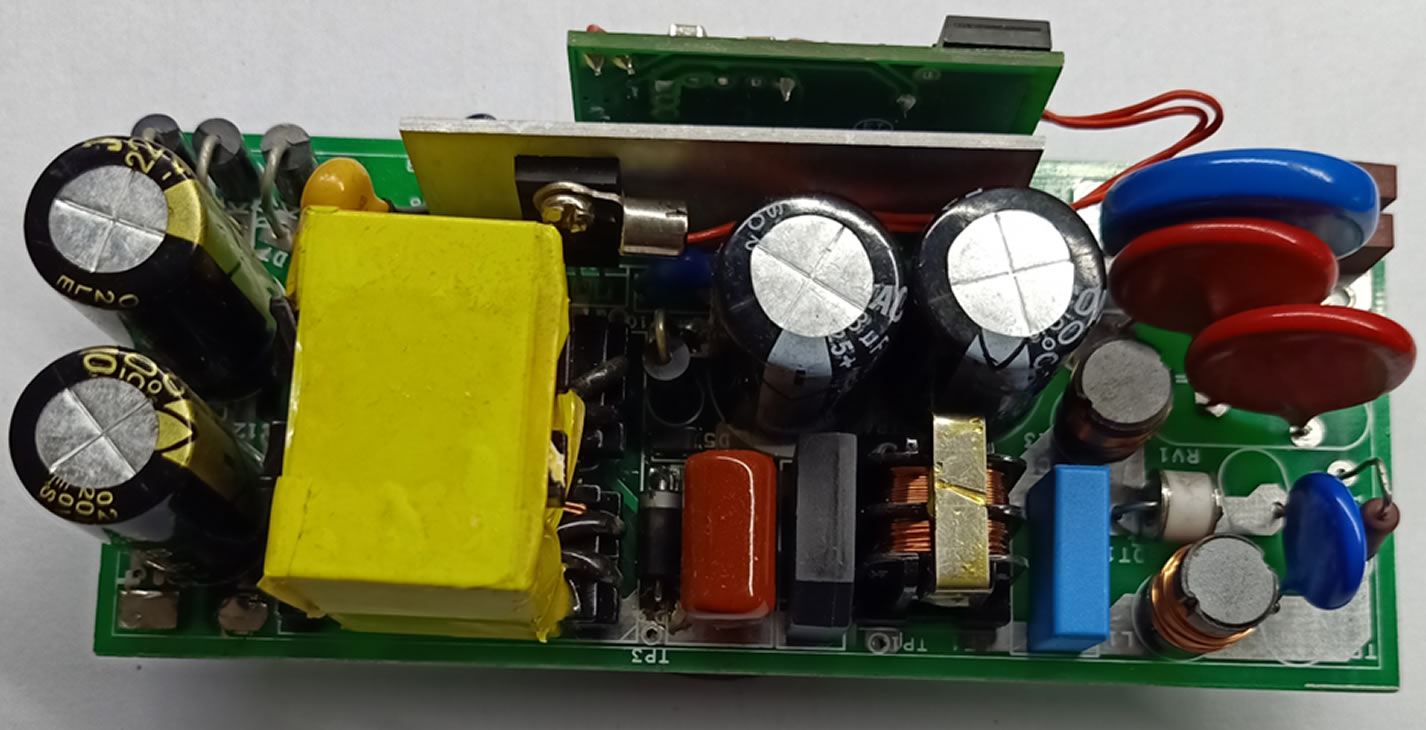

60W AC-DC Isolated LED Driver

Description
  • Robust LED driver (120 strikes of 10kV capability)
  • 60 Watts, output voltage : 36 V (typical)

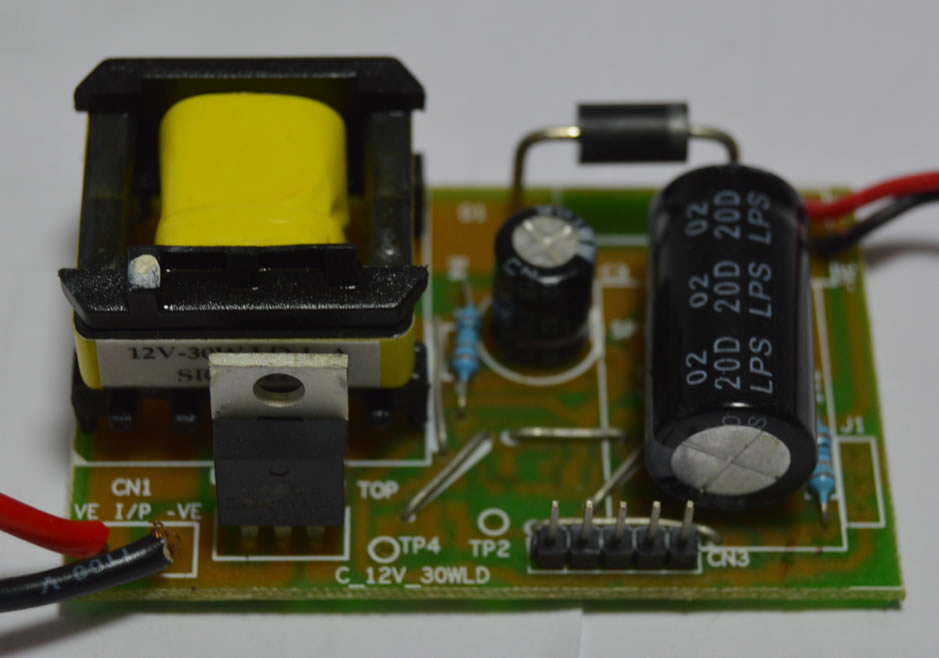

30W Non Isolated DC-DC LED Driver

Application: LED Lighting

Description
  • 12V or 24V input DC LED Light
  • Supports up to 30W
  • Input: 11V to 14.5V (12V Variant)
  • Reverse Polarity Protection
  • Low & High input Voltage Cutoff
  • Well suited for Battery Application.
  • LED Light Dimming Feature
  • Software Programmable LED Current Configuration
  • Motion based LED Output Control

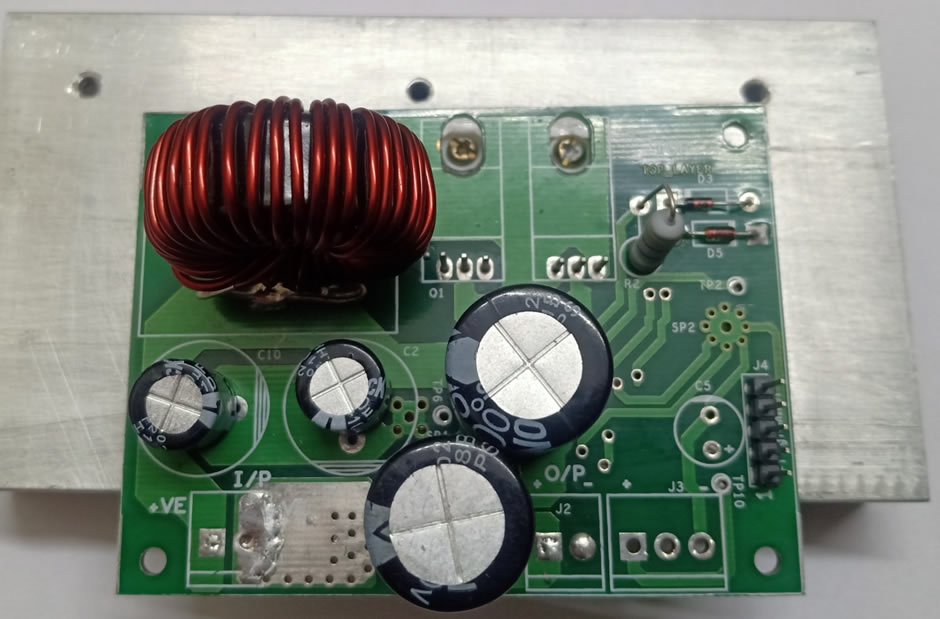

100W Non Isolated DC-DC LED Driver

Application: DC LED Lighting

  • 24V input DC LED Light
  • Supports up to 120W
  • Input: 22V to 28V
  • Reverse Polarity Protection
  • Low & High input Voltage Cutoff
  • Well suited for Battery Application
  • LED Light Dimming Feature
  • Software Programmable LED Current Configuration
